Project One.
A quest to build the world's largest Passive House
CO-REQUISITE PROGRAMS
All PHIUS-certified Passive Houses fully satisfy the requirements of these prestigious programs:
- Project Data
- Start date: July, 2023
- Est. completion: July, 2024
- Total Conditioned Space: 15,990 sf
- Living Space: 13,349 sf
- Conditioned Garage: 1,871 sf
- Conditioned Storage & Attic: 770 sf

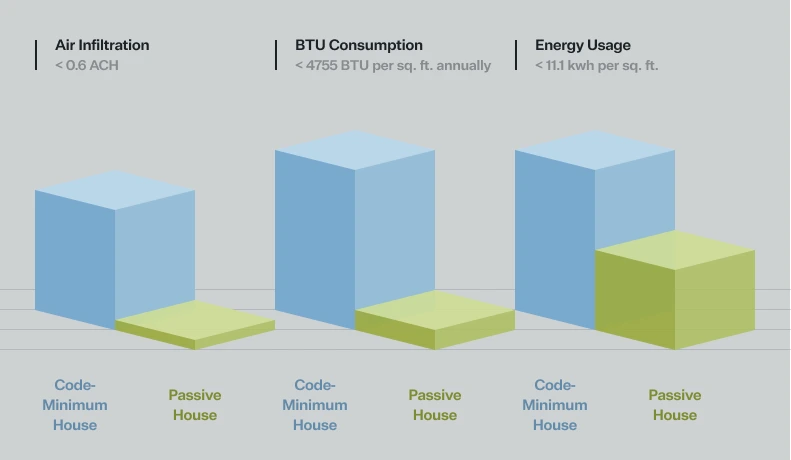

- Performance Data
- (Target / Achieved)
- Air-Tightness: 0.6 ACH50 / TBD
- Total Energy Demand:45,000 BTUs / TBD
- Solar Generation: TBD / TBD
- R-Values Required/Achieved:
- Under-Slab: R-40 / TBD
- Ground Wall: R-28 / TBD
- Above-Grade Wall: R-31 / TBD
- Roof: R-63 / TBD
- Windows: R-7 / R-7.4 (0.135 avg. U-factor)
- Est. passive house annual energy cost: $
- Est. typical annual energy cost: $$$$
What is a "Passive House" ?
Passive Houses achieve extreme efficiency through five strategies:
- Significant and continuous insulation, with few or no thermal bridges
- Robust air-tightness
- Balanced ventilation
- High-efficiency windows
- Minimal HVAC mechanicals
Beyond efficiency, Passive Houses excel in comfort, quality, health, safety, and durability. They are also more beneficial to the environment and have excellent economics. Learn more about the benefits of Passive Houses in “Why Certify?” below.
What is a "Passive House" ?
Passive Houses achieve extreme efficiency through five strategies:
- Significant and continuous insulation, with few or no thermal bridges
- Robust air-tightness
- Balanced ventilation
- High-efficiency windows
- Minimal HVAC mechanicals
Beyond efficiency, Passive Houses excel in comfort, quality, health, safety, and durability. They are also more beneficial to the environment and have excellent economics. Learn more about the benefits of Passive Houses in “Why Certify?” below.
Why Certify?
“PHIUS homes are the most luxurious, energy efficient, safe and resilient single-family dwellings on the planet.” (PHIUS website)
01. Efficiency
Certified Passive Houses are up to 85% more efficient than conventional homes. Energy costs go up over time, so the economic benefits of high efficiency grow year after year.
Once built into the structure of the home, the economic benefits of passive efficiency are permanent and increasing.
02. Energy Independence
Without any onsite energy production, Passive Houses are already close to net-zero, reducing dependence on off-site sources of energy. The addition of on-site solar or geothermal energy can bring total net-zero energy independence, potentially sufficient to also power electric vehicles.
03. Quality
From planning to execution, the extraordinary attention to detail and continuous inspection required to certify as a Passive House is unparalleled in construction, resulting in a carefully planned, expertly built structure of consistently high quality, from deep under the slab to the top of the roof.
04. Comfort
Passive Houses more easily stay warm in the winter and cool in the summer and have fewer hot and cold spots than typical homes, enjoying temperatures evenly distributed throughout the structure.
05. Health
EPA Indoor airPLUS certification ensures optimal, healthy indoor air. Passive houses are actively mechanically ventilated and filtered, keeping pollen, smoke and other pollutants outside where they belong and resulting in healthier indoor air than conventional homes.
Passive Houses manage moisture extremely well, limiting the risk for mold and other moisture-related problems. The air-tightness of Passive Houses greatly reduce the appearance of bugs and rodents.
06. Environment
Passive Houses are beneficial to the environment, greatly reducing dependence on fossil fuels.
07. Safety
Phius-certified buildings go through a rigorous quality control process, ensuring safety for the inhabitants and the environment. From sturdy construction to purified indoor air, Passibe Houses are the safest around.
08. Durability
The holistic design of PHIUS buildings make them uniquely built for the long haul. PHIUS buildings have been proven to be more resilient in the event of natural disasters, such as wildfires and extreme heat and cold events.
09. Resale
Passive houses can cost from 3-10% more to build than typical, code-minimum houses, but have shown in some cases to command a 9% price premium upon resale, recouping the initial investment.
Like any significant home upgrade, Passive House improvements add to the value of the home; unlike other upgrades, however, they permanently lower monthly operating costs, becoming more cost-effective over time as external energy costs continue to increase.
Why Certify?
“PHIUS homes are the most luxurious, energy efficient, safe and resilient single-family dwellings on the planet.” (PHIUS website)
01. Efficiency
Certified Passive Houses are up to 85% more efficient than conventional homes. Energy costs go up over time, so the economic benefits of high efficiency grow year after year.
Once built into the structure of the home, the economic benefits of passive efficiency are permanent and increasing.
02. Energy Independence
Without any onsite energy production, Passive Houses are already close to net-zero, reducing dependence on off-site sources of energy. The addition of on-site solar or geothermal energy can bring total net-zero energy independence, potentially sufficient to also power electric vehicles.
03. Quality
From planning to execution, the extraordinary attention to detail and continuous inspection required to certify as a Passive House is unparalleled in construction, resulting in a carefully planned, expertly built structure of consistently high quality, from deep under the slab to the top of the roof.
04. Comfort
Passive Houses more easily stay warm in the winter and cool in the summer and have fewer hot and cold spots than typical homes, enjoying temperatures evenly distributed throughout the structure.
05. Health
EPA Indoor airPLUS certification ensures optimal, healthy indoor air. Passive houses are actively mechanically ventilated and filtered, keeping pollen, smoke and other pollutants outside where they belong and resulting in healthier indoor air than conventional homes.
Passive Houses manage moisture extremely well, limiting the risk for mold and other moisture-related problems. The air-tightness of Passive Houses greatly reduce the appearance of bugs and rodents.
06. Environment
Passive Houses are beneficial to the environment, greatly reducing dependence on fossil fuels.
07. Safety
Phius-certified buildings go through a rigorous quality control process, ensuring safety for the inhabitants and the environment. From sturdy construction to purified indoor air, Passibe Houses are the safest around.
08. Durability
The holistic design of PHIUS buildings make them uniquely built for the long haul. PHIUS buildings have been proven to be more resilient in the event of natural disasters, such as wildfires and extreme heat and cold events.
09. Resale
Passive houses can cost from 3-10% more to build than typical, code-minimum houses, but have shown in some cases to command a 9% price premium upon resale, recouping the initial investment.
Like any significant home upgrade, Passive House improvements add to the value of the home; unlike other upgrades, however, they permanently lower monthly operating costs, becoming more cost-effective over time as external energy costs continue to increase.
One Certification to rule them all:
All PHIUS-certified Passive Houses utilize and fully satisfy the requirements of these prestigious programs:
PHIUS certification includes Home Energy Rating System (HERS) as part of the third-party Residential Energy Services Network (RESNET) program
PHIUS certification satisfies all U.S. Department of Energy (DOE) Zero Energy Ready Home (ZERH) requirements
PHIUS certification earns the U.S. Environmental Protection Agency (EPA) Indoor airPLUS label
PHIUS certification satisfies all U.S. Environmental Protection Agency (EPA) ENERGY STAR requirements
Hers® Index
A certified Home Energy Rater assesses the energy efficiency of a home, assigning it a relative performance score. The lower the number, the more energy efficient the home. A typical home built to 2006 energy efficiency standards scores 100 on the HERS® Index.
Staircase to zero
The PHIUS standards build upon 3rd party programs such as ENERGY STAR, EPA Indoor airPLUS, and DOE Zero Energy Ready Home. These well-respected programs provide a baseline quality framework for design and construction inspection.
Passive House certification is hard. Very hard.
There are two very high competing standards for Passive Houses: PHI and PHIUS. As of September, 2023, only 224 single-family homes have successfully certified with PHIUS in the United States, and only 10 in Utah; PHI has certified 1,153 homes internationally with 45 in the U.S. and none in Utah.
As of September, 2023, the largest certified Passive House in America, is just over 7,700 square feet, about half the size of Project One. Project One will certify through PHIUS.
PHIUS certification requires proving the attainment of hundreds of difficult performance standards and criteria, including rigorous evaluation and testing before, during, and after construction. Project testing and inspections are conducted by independent RESNET HERS Raters, and help assure PHIUS and the project teams that the home performs as designed.
Project One: Going Green Never Looked So Good
Conventional homes prioritize form over function, resulting in good-looking homes that barely meet minimum code requirements. Passive Houses do the opposite: they prioritize function over form and often compromise good looks to achieve extreme performance numbers.
Project One proves you can have both: extreme performance in a house anyone would be proud to call home, custom built for a surprisingly economical price.
Project Partners
Builder: Cross Construction
Alex Cross
Cross Construction
Architect: Walker Home Design
“As Utah’s Best of State award winning home designer in 2023 and most of the last decade, we are honored to have created the plans for Project One, which will be the largest certified Passive House in the World!”
Jamie Walker
Passive House Consultant: Brach Design
Dave Brach
Efficiency Features
Project One employs some of the most advanced thermal and air-tightness products and techniques in existence.
R-Values / Assemblies:
Under-Slab
Above-Grade Wall
Roof
R-60 total: 1/2″ sheathing > 4″ ccSPF > 11″ R-4/inch insulation; Double-sheeted to provide whole-roof ventilation, keeping shingles cool in the summer and preventing ice dams in the winter
Windows
Garage Doors
Air-Tightness
0.54 ACH50 (PHIUS requirement is 0.6 ACH50 or lower)
Framing
Attic
Ventilation
Four HRV (Heat Recovery Ventilation) units provide continuous mechanical filtering of all indoor air, at a rate of 6 changes per hour. Similar to the geothermal for HVAC, the HRVs have a ground-source heat loop for pre-conditioning outside air.
HVAC
Water Heating
83-gallon high-efficiency heat pump water heater (120 gallon UFHR first hour) uses environmentally friendly CO₂ refrigerant (R744)
Lighting
100% CFLs (Compact Fluorescent Lamps)
Solar
25 kW PV system with power storage batteries
Appliances
100% ENERGY STAR rated
Water Conservation
Low-flow faucets, dual-flush toilets, and drip irrigation
Other Features & Details
Project One is being constructed with advanced techniques and impeccable quality, from under the slab to the top of the roof.
Landscape & Pool Design
Electrical
600-amp service
Theater

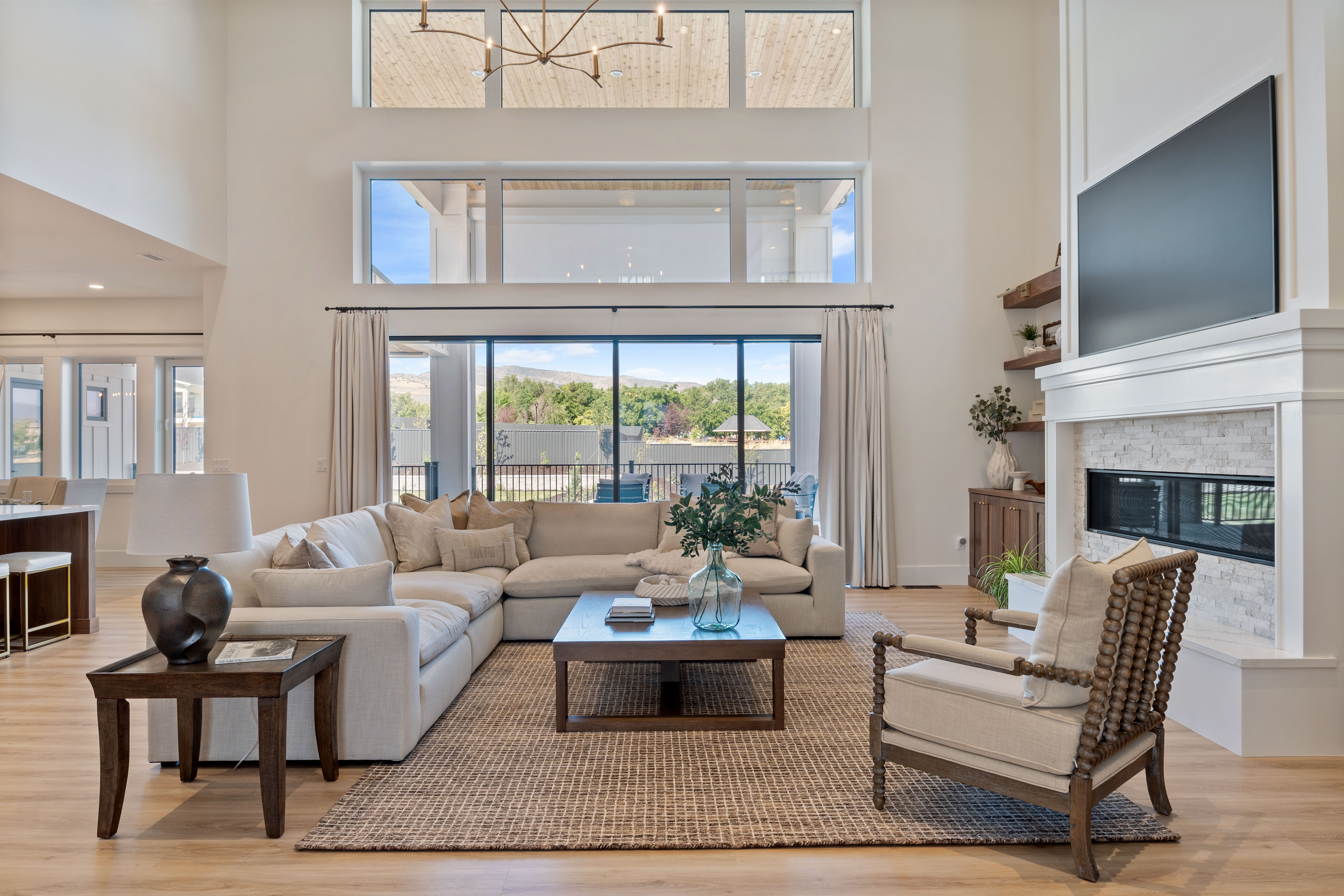

Project Gallery
